Features
Highlights:
- Yaskawa factory installed and tested for a perfect fit and guaranteed long term performance
- Backed by a full Yaskawa warranty
- Gear ratios: 3/1, 5/1, 10/1, 25/1 or 50/1
- Quiet helical cut gears reduce vibration and noise
- High precision operation with a standard backlash of 5 arc-min
- High rigidity and torque capacity with a design featuring uncaged needle roller bearings
- Optimized adapter bushing minimizes inertia, allowing more output torque to be realized
- Seal leakage is prevented by high viscosity, anti-separation grease that won’t liquefy or migrate away from gears
- Maintenance free grease for the life of the unit, regardless of the gearhead’s orientation.
Models & Ratings
200V

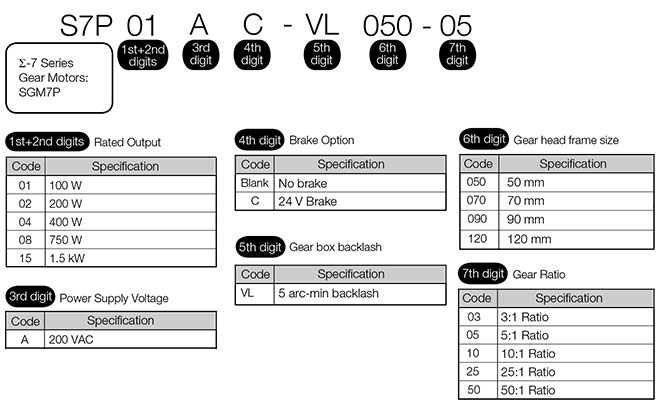

Gear Motor Model Number
|
Base Servo Motor Model (SGM7P-)
|
Gear Ratio
|
---|---|---|
S7P01A□-VL050-03
|
01A7J6□
|
3:1 |
S7P01A□-VL050-05
|
5:1 |
|
S7P01A□-VL050-10
|
10:1 |
|
S7P01A□-VL050-25
|
25:1 |
|
S7P01A□-VL070-50
|
50:1 |
|
S7P02A□-VL070-03
|
02A7J6□
|
3:1 |
S7P02A□-VL070-05
|
5:1 |
|
S7P02A□-VL070-10
|
10:1 |
|
S7P02A□-VL070-25
|
25:1 |
|
S7P02A□-VL070-50
|
50:1 |
|
S7P04A□-VL070-03
|
04A7J6□
|
3:1 |
S7P04A□-VL070-05
|
5:1 |
|
S7P04A□-VL070-10
|
10:1 |
|
S7P04A□-VL070-25
|
25:1 |
|
S7P04A□-VL090-50
|
50:1 |
|
S7P08A□-VL090-03
|
08A7E6□
|
3:1 |
S7P08A□-VL090-05
|
5:1 |
|
S7P08A□-VL090-10
|
10:1 |
|
S7P08A□-VL090-25
|
25:1 |
|
S7P08A□-VL120-50
|
50:1 |
NOTE: The values in parentheses are for Servo Motors with holding brakes (Indicated by value of □ in model numbers).
